200mm, 250mm or 300mm? Choosing a Shower Head and Arm

Shower head size is only one part of a comfortable shower. The head must sit in the right position, leave suitable clearance and work with the water supply. Compare size and arm together so a larger head does not end up too close to the wall or too low above the person using it.

Separate the head from the arm

A plain shower head is the outlet itself. It needs an appropriate wall or ceiling arm unless the selected product is a set that includes one. A handpiece or rail shower is a different format again. Read the contents list so you know exactly what you are buying.

Browse plain shower heads when selecting the pieces separately, or shower head and arm sets for combined options. Check the connection and permitted installation orientation in the product documentation; appearance alone does not establish compatibility.

Compare size with the usable shower area

A 200mm head and a 300mm head create different proportions in the room, but diameter alone does not describe the spray pattern or water pressure. Look at the spray face, the stated operating requirements and the manufacturer’s information for the exact model.

Treat these as checks, not fixed room-size rules. Two heads with the same diameter can have different spray designs and flow characteristics. A larger head should not be selected as a solution to poor water pressure without assessing the underlying installation.

Choose wall or ceiling mounting deliberately

A wall arm brings the head out from a wall connection. Its reach affects where the head sits over the showering area. A ceiling arm drops from above; its length affects the finished head height. Draw both arrangements in side view with the actual ceiling height and shower floor level.

Compare wall shower arms and ceiling shower arms using the dimensions shown on the drawing. The advertised arm length may not be the same as the final projection or drop once fittings and the head are included.

Check the water system and controls

Read the selected head’s pressure range and WELS information. If you want an overhead and hand shower, confirm the mixer and diverter arrangement. Some rail systems combine several components; separately assembled outlets may need different controls. Ask your plumber to check the complete selection before installation.

Confirm these details before buying

• Head dimensions and exact product code.
• Compatible arm and connection arrangement.
• Finished height and horizontal position.
• Clearance from walls, screens and other fittings.
• Water-pressure requirements and model-specific WELS information.
• Which components are included in the selected set.

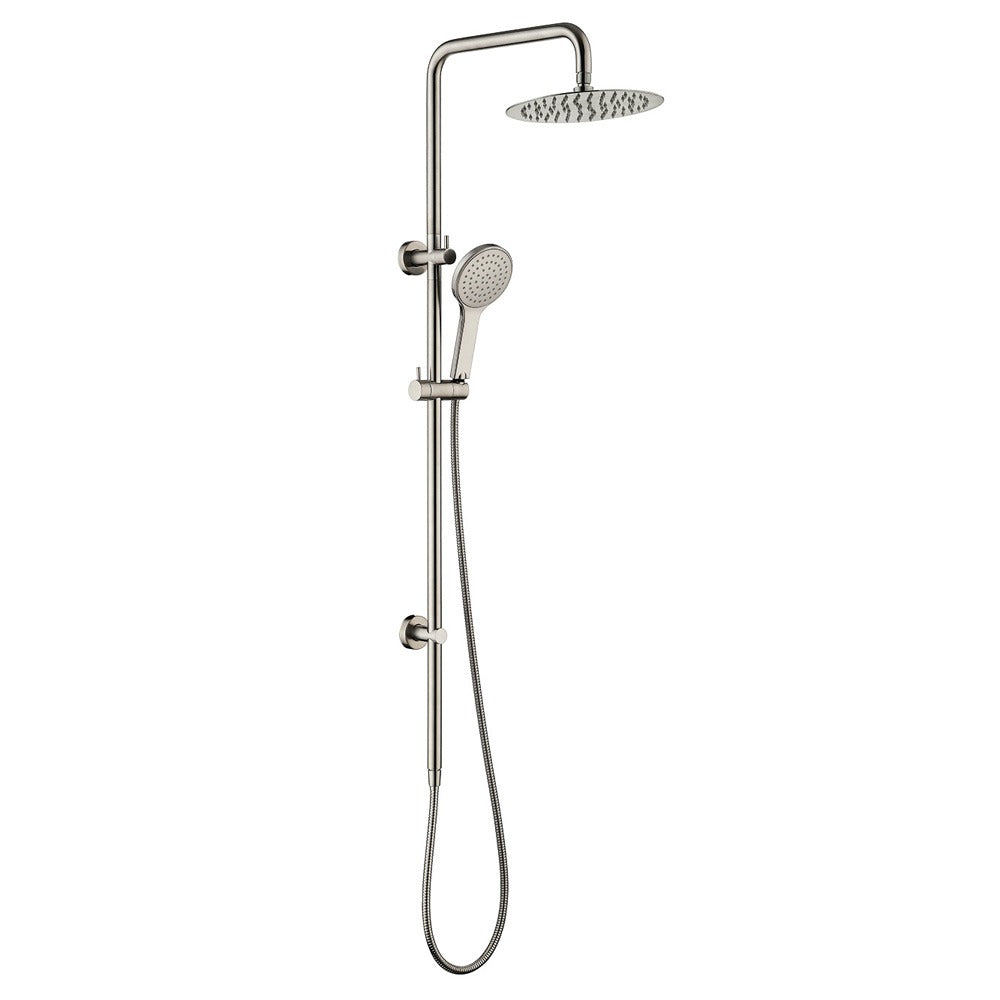

The image shows a combined rail shower to illustrate a different configuration from a plain head. Contact our team if you need help identifying which product type to choose.
